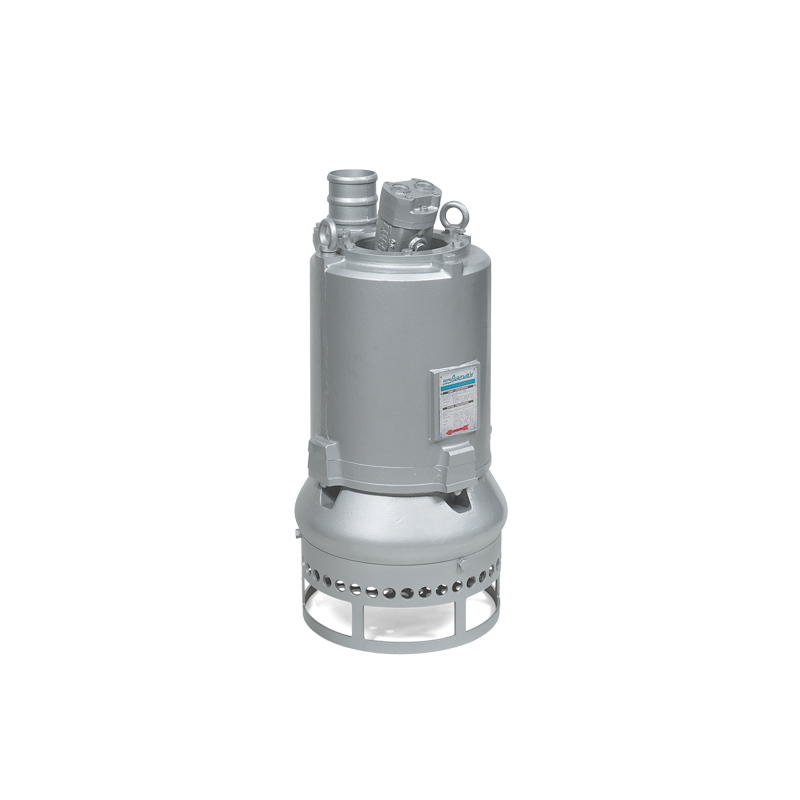

Dragflow Hydraulic Pump – HY24

Available forSaleOnly

The HY24 is an hydraulic pump with high abrasion resistance and can handle material concentrations up to 70%. It is the ideal solution for industrial, mining, and dredging applications in other fields, guaranteeing maximum efficiency and productivity.

Main characteristics

  1. High efficiency agitator, reversible and high chrome for long life and continuous flow lifting of deposited sediments.
  2. Low rotation speed: reduced wear and long term efficiency.
  3. Rugged and heavy duty construction: highly resistant components for loaded and abrasive mixes.

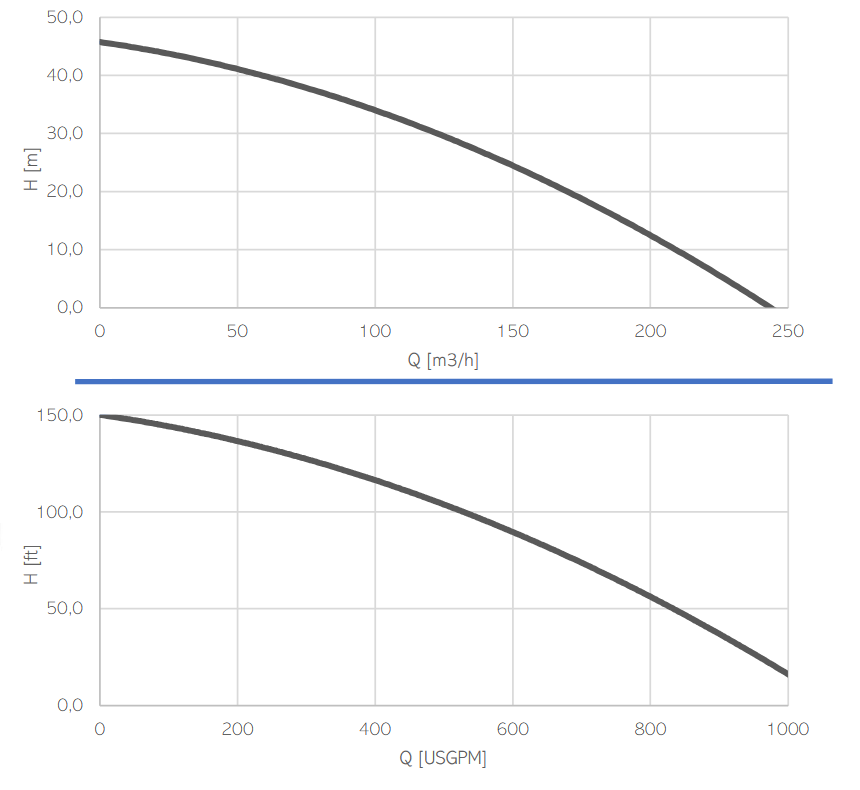

HY24 Characteristics Curve

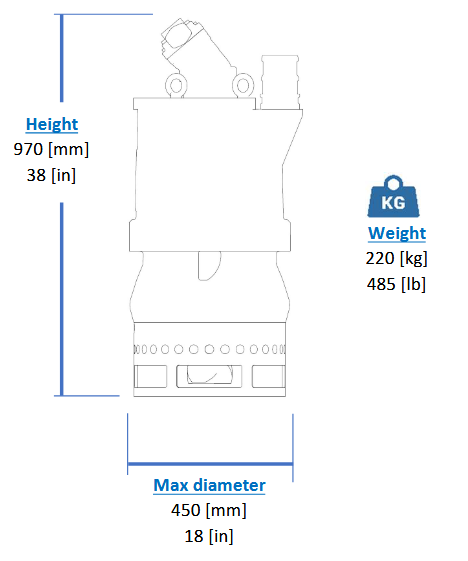

Dimensions and Weight

Specifications

Model HY24
Brake Power 24 kW 32.5 HP
Efficiency [%] 44
RPM Max 2000
Motor Displacement [cc] 23
Oil flow rate 46
Nominal pressure [bar] 300
Max pressure [bar] 350
Solid handling 25 mm 1″
Discharge (Hose adaptor) 100 mm 4’’

Materials

Part  Standard
Casing  Cast Iron EN-GJS500
Body Cast Iron EN-GJS500
Wear Parts Minimum hardness [HB]  High chrome EN-GJN-HV600 (CH6) 550
Main shaft High tensile 39NiCrMo3
PH Range  5-10

Seals and Lubricants

Version  STANDARD
Motor Side  MECHANICAL
Impeller Side MECHANICAL
Oil type ISO32
Electrical motor
Service line Ports: SAE J518 3/4in
Case drain Port: DIN3852 M18x1,5

Operating Conditions
Max liquid temperature 40°C
Min Submersion depth 380mm
