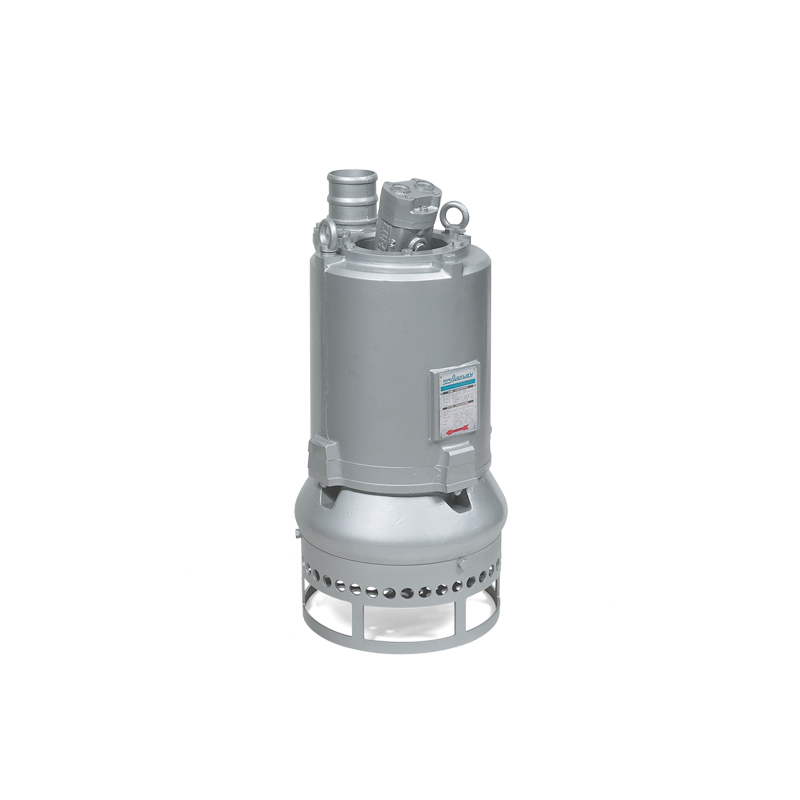

Dragflow Hydraulic Pump – HY18

Available forSaleOnly

The HY18 is an hydraulic pump with high abrasion resistance and can handle material concentrations up to 70%. It is the ideal solution for industrial, mining, and dredging applications in other fields, guaranteeing maximum efficiency and productivity.

Main characteristics

  1. High efficiency agitator, reversible and high chrome for long life and continuous flow lifting of deposited sediments.
  2. Low rotation speed: reduced wear and long term efficiency.
  3. Rugged and heavy duty construction: highly resistant components for loaded and abrasive mixes.

HY18 Characteristics Curve

Dimensions and Weight

Specifications

Model HY18
Brake Power 13 kW 17 HP
Efficiency [%] 22
RPM Max 2000
Motor Displacement [cc] 23
Oil flow rate 46
Nominal pressure [bar] 200
Max pressure [bar] 350
Solid handling 20 mm 0.8″
Discharge (Hose adaptor) 80 mm 3’’

Materials

Part  Standard
Casing  Cast Iron EN-GJS500
Body Cast Iron EN-GJS500
Wear Parts Minimum hardness [HB]  High chrome EN-GJN-HV600 (CH6) 550
Main shaft High tensile 39NiCrMo3
PH Range  5-10

Seals and Lubricants

Version  STANDARD
Motor Side  MECHANICAL
Impeller Side MECHANICAL
Oil type ISO32
Electrical motor
Service line Ports: SAE J518 3/4in
Case drain Port: DIN3852 M18x1,5

Operating Conditions
Max liquid temperature 40°C
Min Submersion depth 350mm
