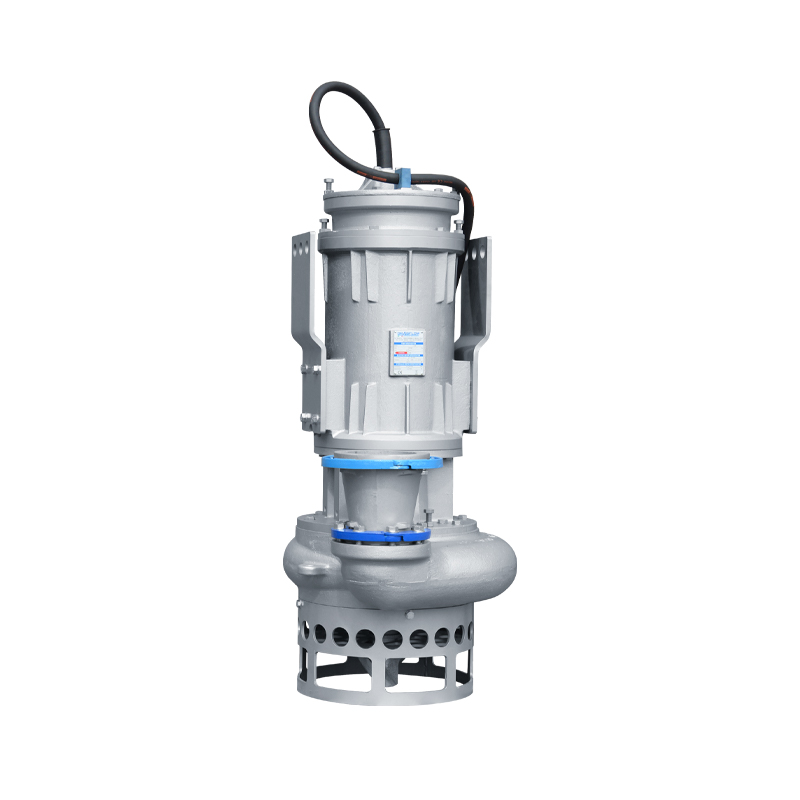

Dragflow Electric Pump EL606

Available forSaleOnly

The EL606 is an electric pump with high abrasion resistance and can handle material concentrations up to 70%. It is the ideal solution for industrial, mining, and dredging applications in other fields, guaranteeing maximum efficiency and productivity.

Main characteristics

  • High efficiency agitator, reversible and high chrome for long life and continuous flow lifting of deposited sediments.
  • Low rotation speed: reduced wear and long term efficiency.
  • Rugged and heavy duty construction: highly resistant components for loaded and abrasive mixes.

EL606 Characteristics Curve

Dimensions and Weight

Specifications

Model EL606
Brake Power 75 kW 100 HP
Electric Power 80 kW 107 HP
Frequency [Hz] 60
Efficiency 51%
Number of Poles 6
RPM 1182
Voltage [V] 460
Rated Current [A] 125
Solid handling 60 mm 2.4″
Discharge [DN-PN] 150-10

Materials

Part  Standard
Casing  Cast Iron EN-GJS500
Body Cast Iron EN-GJL250
Wear Parts Minimum hardness [HB]  High chrome EN-GJN-HV600 (CH6) 550
Main shaft High tensile 39NiCrMo3
PH Range  5-10

Seals and Lubricants

Version EL606 MG MS
Motor Side LIPS MECHANICAL MECHANICAL
Impeller Side LIPS LIPS MECHANICAL
Oil type EP320 ISO32 ISO32



Electrical motor
Insulation class H

Cable
1 x H07RN-F 4G35 length 20m

Operating Condition

Max liquid temperature 35°C
Min Submersion depth 1510mm
