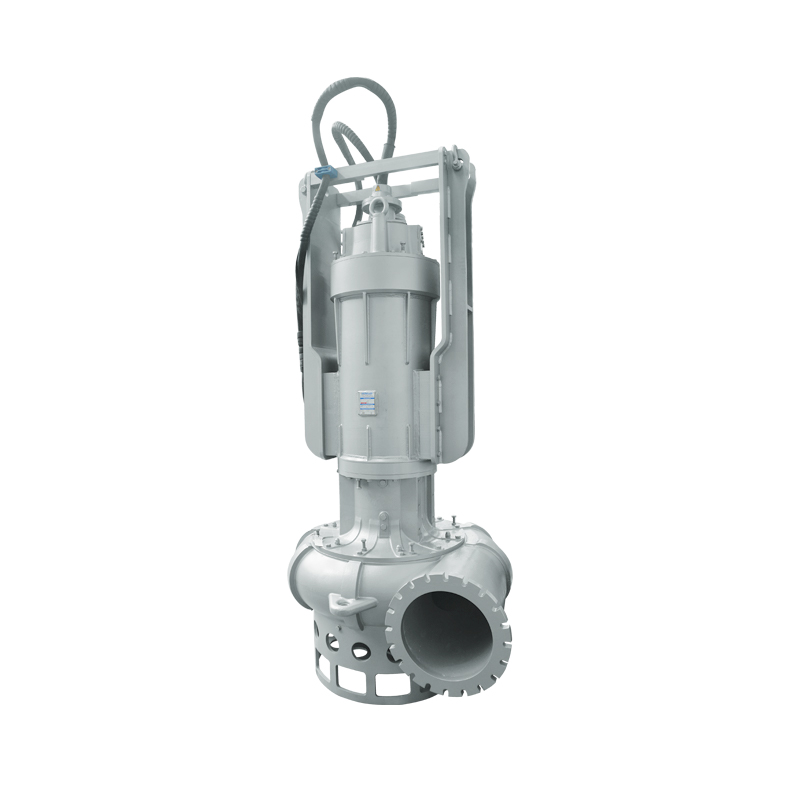

Dragflow Electric Pump EL300

Available forSaleOnly

The EL300 is an electric pump with high abrasion resistance and can handle material concentrations up to 70%. It is the ideal solution for industrial, mining, and dredging applications in other fields, guaranteeing maximum efficiency and productivity.

Main characteristics

  • High efficiency agitator, reversible and high chrome for long life and continuous flow lifting of deposited sediments.
  • Low rotation speed: reduced wear and long term efficiency.
  • Rugged and heavy duty construction: highly resistant components for loaded and abrasive mixes.

EL300 Characteristics Curve

Dimensions and Weight

Specifications

Model EL300
Brake Power 265 kW 360 HP
Electric Power 280 kW 380 HP
Frequency [Hz] 60
Efficiency 60%
Number of Poles 8
RPM 880
Voltage [V] 480
Rated Current [A] 420
Solid handling 150 mm 5.9″
Discharge [DN-PN] 250

Materials

Part  Standard
Casing  Cast Iron EN-GJS500
Body Cast Iron EN-GJS500
Wear Parts Minimum hardness [HB]  High chrome EN-GJN-HV600 (CH6) 550
Main shaft High tensile 39NiCrMo3
PH Range  5-10

Seals and Lubricants

Version Standard MG
Motor Side MECHANICAL MECHANICAL
Impeller Side LIPS MECHANICAL
Oil type ISO32 ISO32



Electrical motor
Insulation class H

Cable
1 x H07RN-F 4G95 length 20m

Operating Condition

Max liquid temperature 35°C
Min Submersion depth 2900mm
