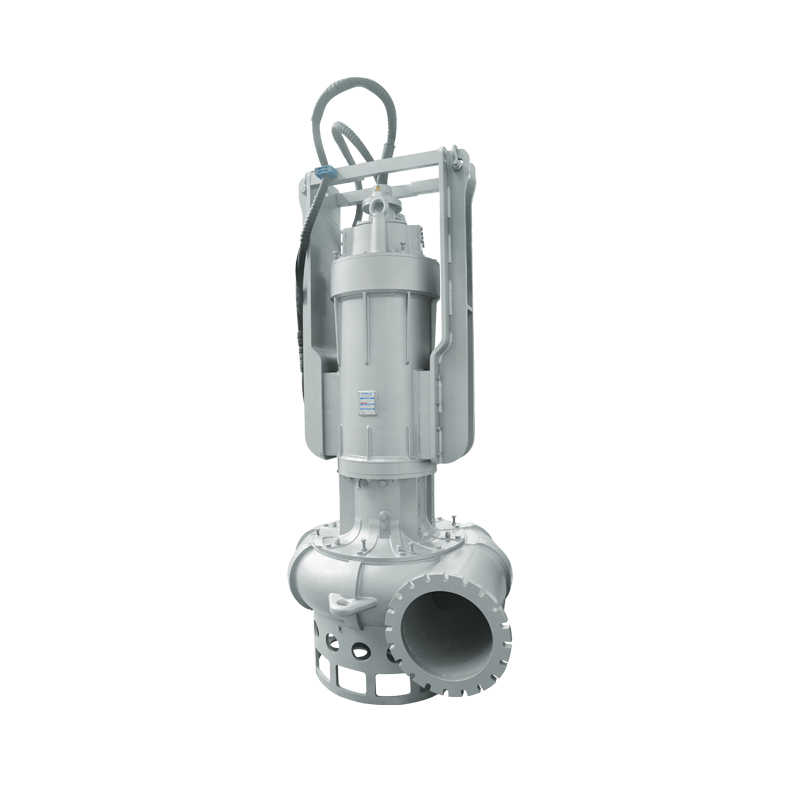

Electric Pump EL1506Dragflow
Available forSaleOnly
The EL1506 is an electric pump with high abrasion resistance and can handle material concentrations up to 70%. It is the ideal solution for industrial, mining, and dredging applications in other fields, guaranteeing maximum efficiency and productivity.
Main characteristics
- High efficiency agitator, reversible and high chrome for long life and continuous flow lifting of deposited sediments.
- Low rotation speed: reduced wear and long term efficiency.
- Rugged and heavy duty construction: highly resistant components for loaded and abrasive mixes.

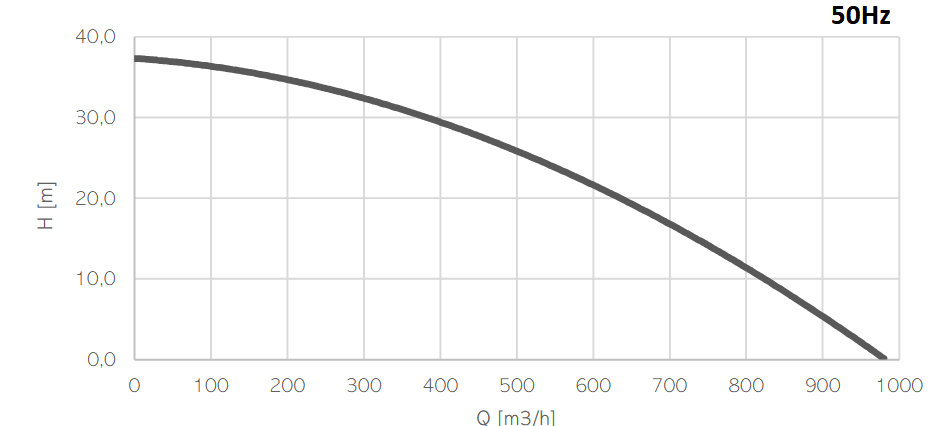

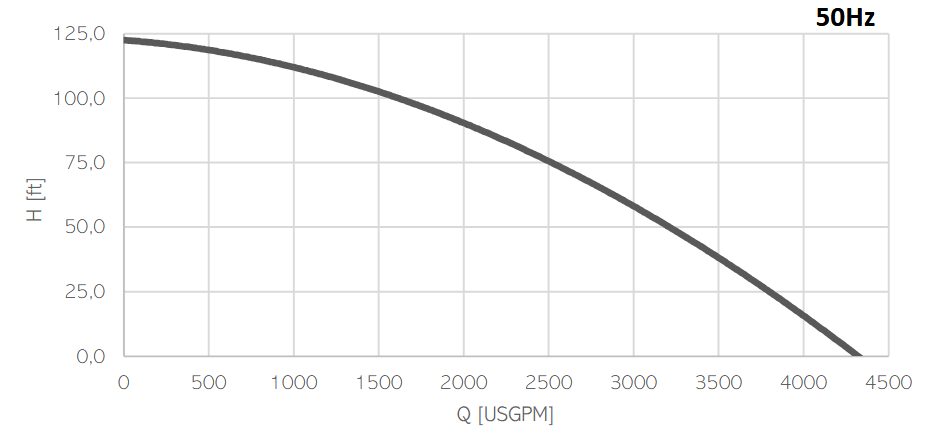

EL1506 Characteristics Curve

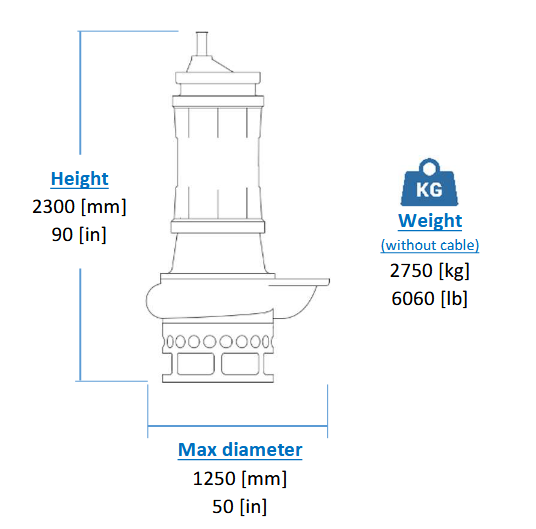

Dimensions and Weight
Specifications
Model | EL1506 | |
Brake Power | 110 kW | 147 HP |
Electric Power | 120 kW | 161 HP |
Frequency [Hz] | 50 | – |
Efficiency | 62% | – |
Number of Poles | 6 | – |
RPM | 980 | – |
Voltage [V] | 400 | – |
Rated Current [A] | 210 | – |
Solid handling | 60 mm | 2.4″ |
Discharge [DN-PN] | 200-10 |
Materials
Part | Standard |
Casing | Cast Iron EN-GJS500 |
Body | Cast Iron EN-GJL250 |
Wear Parts Minimum hardness [HB] | High chrome EN-GJN-HV600 (CH6) 550 |
Main shaft | High tensile 39NiCrMo3 |
PH Range | 5-10 |
Seals and Lubricants
Version | MS |
Motor Side | MECHANICAL |
Impeller Side | MECHANICAL |
Oil type | ISO32 |
Electrical motor
Insulation class H
Insulation class H
Cable
1 x H07RN-F 4G95 length 20m
Operating Condition
Max liquid temperature 35°C
Min Submersion depth 1820mm
