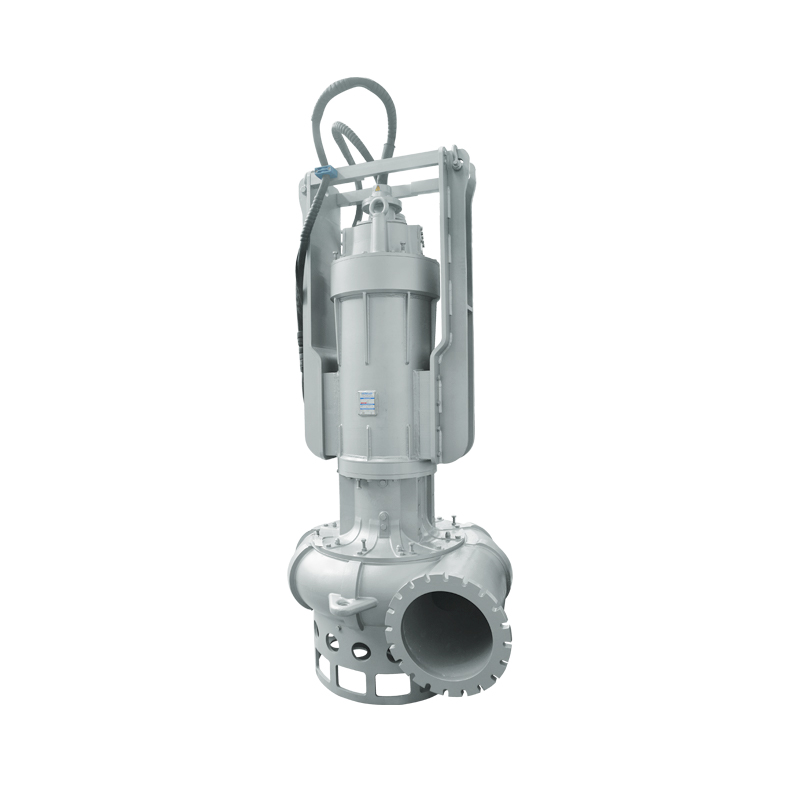

Dragflow Electric Pump EL150

Available forSaleOnly

The EL150 is an electric pump with high abrasion resistance and can handle material concentrations up to 70%. It is the ideal solution for industrial, mining, and dredging applications in other fields, guaranteeing maximum efficiency and productivity.

Main characteristics

  • High efficiency agitator, reversible and high chrome for long life and continuous flow lifting of deposited sediments.
  • Low rotation speed: reduced wear and long term efficiency.
  • Rugged and heavy duty construction: highly resistant components for loaded and abrasive mixes.

EL150 Characteristics Curve

Dimensions and Weight

Specifications

Model EL150
Brake Power 110 kW 147 HP
Electric Power 120 kW 161 HP
Frequency [Hz] 50 60
Efficiency 64% 63%
Number of Poles 10 10
RPM 585 700
Voltage [V] 400 460
Rated Current [A] 217 190
Solid handling 120 mm 4,7″
Discharge [DN-PN] 250

Materials

Part  Standard
Casing  Cast Iron EN-GJS500
Body Cast Iron EN-GJS500
Wear Parts Minimum hardness [HB]  High chrome EN-GJN-HV600 (CH6) 550
Main shaft High tensile 39NiCrMo3
PH Range  5-10

Seals and Lubricants

Version Standard MG
Motor Side LIPS MECHANICAL
Impeller Side LIPS LIPS
Oil type EP320 ISO32



Electrical motor
Insulation class H

Cable
1 x H07RN-F 4G95 length 20m

Operating Condition

Max liquid temperature 35°C
Min Submersion depth 2280mm
