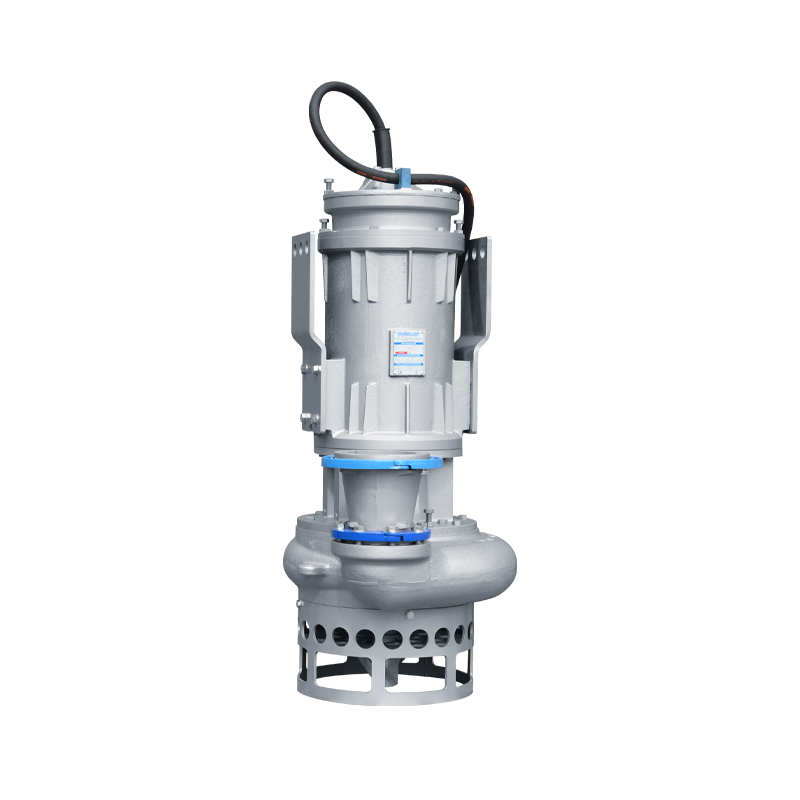

Dragflow Electric Pump EL1204 UHH

Available forSaleOnly

The EL1204UHH is an electric pump with high abrasion resistance and can handle material concentrations up to 70%. It is the ideal solution for industrial, mining, and dredging applications in other fields, guaranteeing maximum efficiency and productivity.

Main characteristics

  • High efficiency agitator, reversible and high chrome for long life and continuous flow lifting of deposited sediments.
  • Low rotation speed: reduced wear and long term efficiency.
  • Rugged and heavy duty construction: highly resistant components for loaded and abrasive mixes.

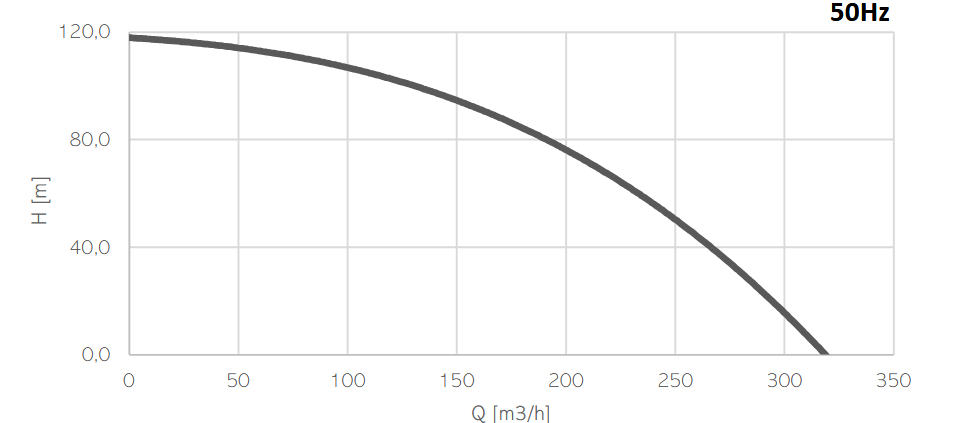

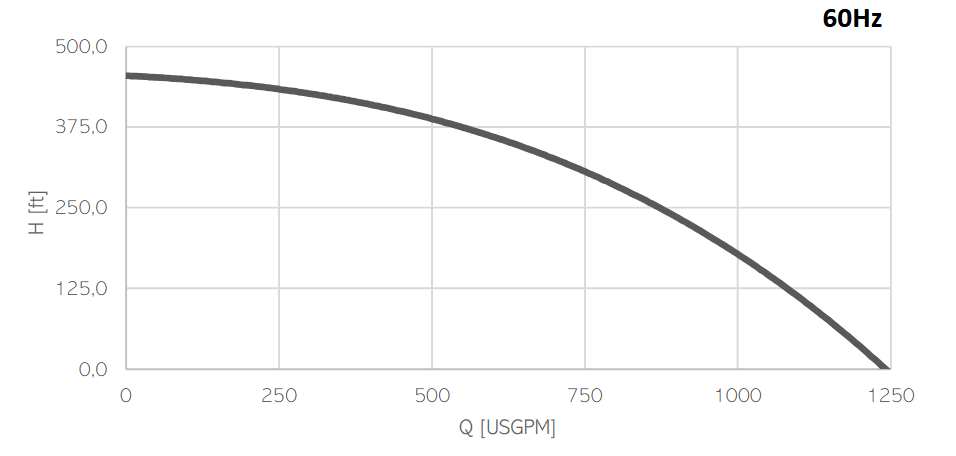

EL1204UHH Characteristics Curve

Dimensions and Weight

Specifications

Model EL1204UHH
Brake Power 120 kW 160 HP
Electric Power 128 kW 171 HP
Frequency [Hz] 50 60
Efficiency 43% 42%
Number of Poles 4 4
RPM 1450 1740
Voltage [V] 400 460
Rated Current [A] 206 180
Solid handling 20 mm 0.8″
Discharge [DN-PN] 100-10



Materials

Part  Standard
Casing  Cast Iron EN-GJS500
Body Cast Iron EN-GJL250
Wear Parts Minimum hardness [HB]  High chrome EN-GJN-HV600 (CH6) 550
Main shaft High tensile 39NiCrMo3
PH Range  5-10

Seals and Lubricants

Version EL1204UHH MG MS
Motor Side LIPS MECHANICAL MECHANICAL
Impeller Side LIPS LIPS MECHANICAL
Oil type EP320 ISO32 ISO32



Electrical motor
Insulation class H

Cable
1 x H07RN-F 4G35 length 20m

Operating Condition

Max liquid temperature 35°C
Min Submersion depth 1700mm
