Dragflow Electric Pump EL5

Available forSaleOnly

The EL5 is an electric pump with high abrasion resistance and can handle material concentrations up to 70%. It is the ideal solution for industrial, mining, and dredging applications in other fields, guaranteeing maximum efficiency and productivity.



Main characteristics

  • High efficiency agitator, reversible and high chrome for long life and continuous flow lifting of deposited sediments.
  • Low rotation speed: reduced wear and long term efficiency.
  • Rugged and heavy duty construction: highly resistant components for loaded and abrasive mixes.

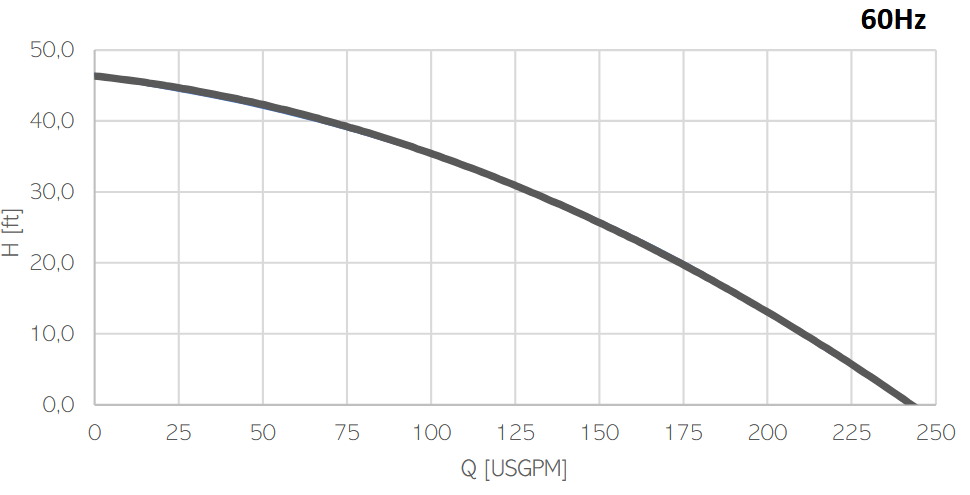

EL5 Characteristics Curve

Dimensions and Weight

Specifications

Model EL5
Brake Power 3.7 kW 5 HP
Electric Power 4.5 kW 6 HP
Frequency [Hz] 50 60
Efficiency [%] 22% 21%
Number of Poles 4 4
RPM 1450 1740
Voltage [V] 400 460
Rated Current [A] 8.7 7.5
Solid handling 20 mm 0.8″
Discharge (Hose adaptor) 80 mm 3’’

Materials

Part  Standard
Casing  Cast Iron EN-GJS500
Body Cast Iron EN-GJS500
Wear Parts Minimum hardness [HB]  High chrome EN-GJN-HV600 (CH6) 550
Main shaft High tensile 39NiCrMo3
PH Range  5-10

Seals and Lubricants

Version  STANDARD
Motor Side  MECHANICAL
Impeller Side MECHANICAL
Oil type ISO32
Electrical motor
Insulation class H
Cable
1 x H07RN-F 4G10 length 20m
Operating Conditions
1 x H07RN-F 4G10 length 20m
